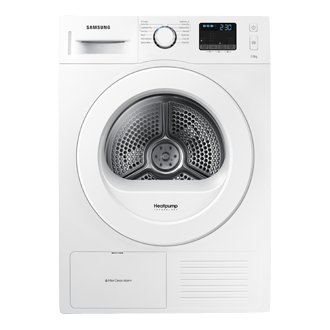

Samsung Heat Pump Tumble Dryer User Manual
View and Download Samsung DV9 Series user manual online. Heat pump Dryer. DV9 Series Dryer pdf manual download. Also for: Dv7 series, Dv8 series. I had a heavy wet queen size blanket in the dryer before it stopped rotating. The timer continued. The only”code” is a picture of a tee shirt that is flashing with an arrow to another tee shirt that is not flashing and has two wiggle lines going to the middle like maybe it is drying. View and Download Samsung DV9 Series user manual online. Heat pump Dryer. DV9 Series Dryer pdf manual download. Also for: Dv7 series, Dv8 series.
Serie 8 Condenser tumble dryer with heat pump
Download user manual tumble dryer Bosch WTWH7560GB
in PDF format: WTWH7560GB
- Home Connect: home appliances with smart connectivity for an easier everyday life.
- Energy efficiency class A++: for extremely efficient drying.
- SelfCleaning Condenser™: no more manual cleaning, plus energy savings in class A++ for the life of the dryer.
- Fast drying: dries a full load up to 35 min faster than before.
- Easy to operate thanks to the intuitive user interface.
Performance
- Energy efficiency class: A++
- Capacity: 9 kg
- Energy consumption 259.0 kWh per year, based on 160 drying cycles of the standard cotton programme at full and partial load, and the consumption of the low-power modes. Actual energy consumption per cycle will depend on how the appliance is used
- Energy consumption of the standard cotton programme at full load 2.13 kwh and energy consumption of the standard cotton programme at half load 1.21 kwh
- The programme Cottons cupboard dry used at full and partial load is the standard drying programme to which the information in the label and the fiche relates, this programme is suitable for drying normal wet cotton laundry and is the most efficient programme in terms of energy consumption for cotton.
- Weighted programme time of the standard cotton programme at full and partial load: 123 min.
- Programme time of the standard cotton programme at full load 157 min and programme time of the standard cotton programme at partial load 97 min.
- Condensation efficiency class A on a scale from G (least efficient) to A (most efficient).
- Average condensation efficiency of the standard cotton programme at full load 87 % and average condensation efficiency of the standard cotton programme at partial load 94 %.
- Weighted condensation efficiency for the standard cotton programme at full and partial load: 91 %.
- Power consumption in off-mode 0.1 W and in left-on mode 0.1 W
- Duration of left-on mode: 30 min
- Noise level: 64 dB (A) re 1 pW
Programmes/functions
I trust more shell engine oil(20-40), at shell petrol pumps, so how many liters of oil is needed for ford ikon.3. Which is best servicing station apart from authorised servicing center( at abids they said it will cost me full 5k for one servicing if the ening is reading 40k.4. I have problem with the flange of ford ikon( it is borken, where can I get the new one or repair the old one) as my previous owner has replaced it with wooden 1inch plate, it is creating visibility problem for me, I want to get it as original one.2. Ford ikon 1.3 flair user manual pdf.
- Fully electronic control dial for sensor programmes and timed programmes
- Special programmes: Woollens, Mixed Load, Towels, Duvet, Timed programme warm, Timed programme cold, Cottons, Easy-Care, Allergy +, Sportswear, Down, Super Quick 40, Shirts/blouses, Delicates
- Touch control buttons: Low heat, Buzzer, start/pause, Drying aim, Power button, fine-tuning for drying level, Child lock 3 sec., Reduced ironing 60 mins, Reduced ironing 120 mins, Remote Start, 24 hour Time Delay
Key features
- Home Connect: Remote Monitoring and Control
- Heat Pump with self cleaning condenser
- Sensitive drying: large stainless steel drum with textile care and revolution drying system
- AntiVibration design: for greater stability and quietness
Additional features
- Large LED display for remaining time and 24 hours time delay, programme progress indication and special functions
- Anti crease cycle 120 minutes at the end of the programme
- Control dial with integrated On / Off mode
- Drum interior light
- Buzzer to indicate the end of cycle
- Child lock
- Door hinge: right-hand
- Container for condensed water
Technical Information
- Dimensions (H X W X D): 84.2 x 59.8 x 59.9 cm
- slide-under installation
- Glass door, chrome, white
| Dimensions of the product (mm) | 842 x 598 x 599 |
|---|---|
| Dryer type | Condenser |
| Installation type | Free-standing |
| Capacity (kg) | 9.0 kg |
| Energy efficiency | A++ |
| List of programmes | additional programmes |
| Digital countdown indicator | |
| Start delay options | Continuous |
| Door hinge | Right |
| Interior light | |
| Removable work top | |
| Length of electrical supply cord (cm) | 145.0 cm |
| Fluorinated greenhouse gases | |
| Quantity of fluorinated gases (kg) | 0.290 kg |
| Type of refrigerant | R407C |
| Hermetically sealed equipment | |
| The quantity expressed in CO2 equivalent (t) | 0.514 t |
| Power consumption standby/network: Please check the user manual for how to switch off the WiFi module. | 1.8 W |
| Time auto-standby/network | 15.0 min |
| Power consumption in off-mode (W) – NEW (2010/30/EC) | 0.10 W |
| Power consumption in left-on mode (W) – NEW (2010/30/EC) | 0.10 W |
| Duration of the left-on mode – NEW (2012/30/EC) (min) | 30 min |
| Available languages display | English |
Connectivity
| Home Connect | |
|---|---|
| Home Connect Features | Remote Monitoring and Control |
| Home Connect Connectivity | Wi-Fi |
Construction type
| Installation type | Freestanding |
|---|---|
| Door hinge | Right |
| Drum material | Stainless steel |
| Dryer type | Condenser |
| Installation type | Free-standing |
| Removable work top |
Tumble Dryer Condenser
Size and weight
| Dimensions of the product (mm) | 842 x 598 x 599 |
|---|---|
| Drum volume (l) | 112 l |
| Height of removable worktop (mm) | 842 mm |
| Net weight (kg) | 54.0 kg |
Drying
| Delicates cycle | Gentle |
|---|---|
| anti-crease | 120 min |
| Quick dry | |
| Adjustable drying temperature | |
| Programme options for drying | Cotton, downs clothes, Mixture, shirts/blouses, Sportswear, Super 40, Synthetic, Time programme cold, Time program warm, towels, Woollens finish |
| Drying time selector | |
|---|---|
| Fluff filter | |
| Digital countdown indicator | |
| End of cycle indicator | Acoustic, LED-display |
| Blocked filter indicator | |
| Full tank indicator | |
| Interior light | |
| Reverse tumble action | |
| Start delay options | Continuous |
| Connection rating (W) | 1,000 W |
|---|---|
| Length of electrical supply cord (cm) | 145.0 cm |
| Current (A) | 10 A |
| Exhaust water pipe | |
| Poss f perm con of condens out | |
| Frequency (Hz) | 50 Hz |
| Plug type | GB plug |
| Vent hose | |
| Location of venting exit | N/A |
| Voltage (V) | 220-240 V |
